This page shows how to perform Poisson regression using SPC for Excel.

In Poisson regression, the response variables (Y) are counting data – integers – and must be greater than or equal to 0. For example, you might want to examine the number of traffic accidents at a given intersection. You collect data on the number of accidents, which is the response variable, and the time of day (morning, afternoon, night) and weather conditions (sunny, raining, cloudy), which are the predictor variables. The Poisson regression allows you to determine which predictors have a statistically significant impact on the response variable.

The response variable must be counting data (0, 1, 2, 10, 50, 1000, etc.) and cannot have any values less than 0. It must also follow a Poisson distribution.

This page contains the following:

### Example

A chemist is interested in decreasing the blemishes on plastic bottles. He has two factors he is interested in: the size of the cavity and the temperature. He has collected 30 data points. The model he is using is:

Blemish Defects = Exp(Y)

where Y is a function of the cavity size and temperature.

### Data Entry

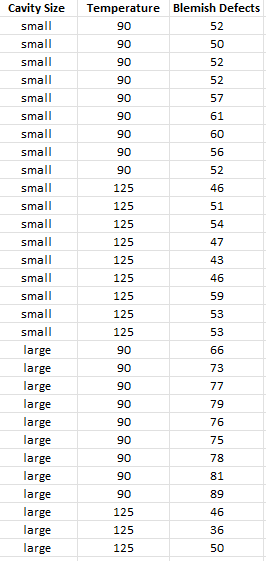

Enter the data into a spreadsheet as shown below. The data can be downloaded here. The data must be in columns with the variable names in the first cell of the column.

### Running the Poisson Regression

- 1. Select data on the spreadsheet including the headings. You can use “Select Cells” in the “Utilities” panel of the SPC for Excel ribbon to quickly select the cells.
- 2. Select “Regression” from the “Cause and Effect” panel on the SPC for Excel ribbon.
- 3. Select “Poisson Regression."

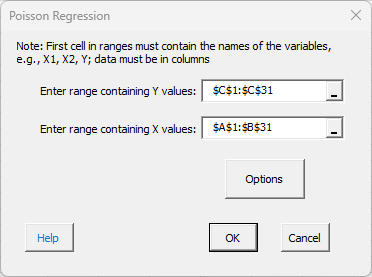

- 4. The Poisson regression input screen is shown below. The ranges you selected above are the default values assuming that the Y values are in the last column.

- Enter range containing Y values: the worksheet range containing the Y values
- Enter range containing X values: the worksheet range containing the X values

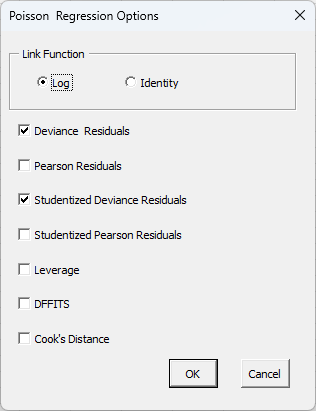

- Options: selecting options displays the input form below.

- Link Function: select either Log (the default) or Identity.
- The default residuals are checked. You can change those options.
- Select OK to generate the regression analysis.
- Select Cancel to exit the SPC for Excel program.

### Poisson Regression Output

There are four new worksheets added during the analysis:

- Data (1)
- Summary (1)
- Residuals (1)
- Regression Charts (1)

The number in parentheses is the number of regressions in the workbook. This allows you to keep track of the worksheets that go together when you remove observations, remove variables, or transform the Y variable and rerun the regression. The ranges containing the results on the first three sheets listed are protected. This is necessary for the program to find the information needed to rerun the regression. The four worksheets are described below.

#### Data

This worksheet contains the data used in the regression analysis.

#### Summary

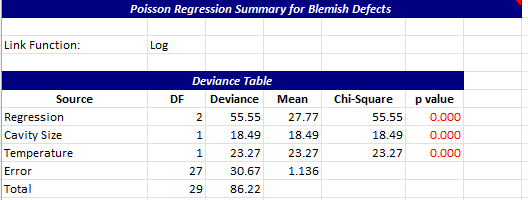

Most of the output for the Poisson regression is shown on the Summar worksheet. The top part of the Summary sheet shows the link function used and the deviance table.

The deviance table is used to define which variables have a significant impact on the response variable. If the p-value for the source is less than 0.05, the variable has a significant impact on the response. If the p-value for the source is greater than 0.05, you might consider removing it from the model, as shown below. In this example, both the cavity size and temperature are statistically significant. If the p-value is less than 0.05, it is shown in red.

Temperature is a continuous predictor. Since it is statistically significant, it means that the coefficient for temperature is different than 0. Cavity size is a categorical predictor. If a categorical predictor is statistically significant, then it means that the levels (like small and large) don’t have the same average (for blemish defects).

The next output on the Summary worksheet is the predictor’s table.

This contains the coefficients, standard error, t statistic, p value, the 95 % confidence interval for the coefficients and the VIF. Coefficients with p values less than 0.05 are statistically significant. These will be in red also if they are less than 0.05.

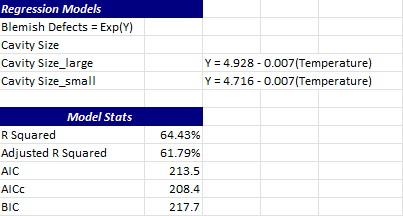

The regression model and model statistics are shown next on the summary sheet.

The model is given. If categorical predictors are present, then there is a model for each categorical level for each categorical predictor. The model statistics are then given. The deviance R^{2} and adjusted deviance R^{2} are given. The larger the percentages, the better the model is. Three others statistics are given:

- Akaike Information Criterion (AIC)
- AICc (Akaike’s Corrected Information Criterion)
- BIC (Bayesian Information Criterion)

These statistics are used to compare this model with other models. The smaller the values the better.

The Goodness of Fit table is then shown on the Summary worksheet.

The value for the deviance is the error deviance from the Deviance Table above while the Pearson Chi-Squared value is the square of the Peason’s deviance (see below). The major reason for the Goodness of Fit table is to see how well the data fits the model. If there is a small p-value, then there is not a good fit.

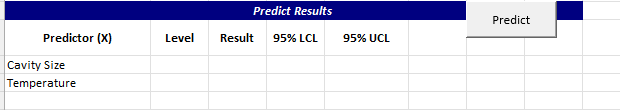

The last portion of the Summary sheet is the Predict Results section.

Enter values for the cavity size and temperature and then select Predict. The software will provide the result along with the 95% confidence limits.

#### Residuals

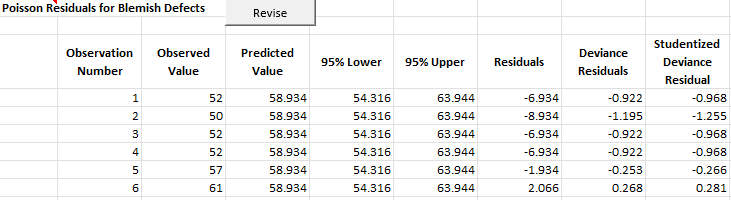

The residuals worksheet contains the observation number, the observed values, predicted values, and the residuals using the options selected early or the defaults.

#### Regression Charts

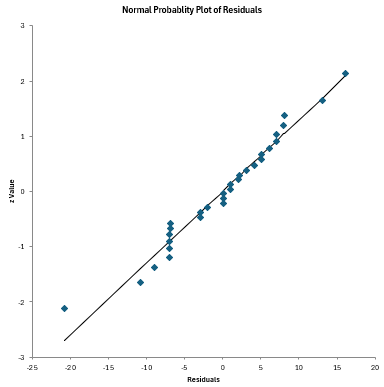

There are two charts that are automatically created in this worksheet: a normal probability plot for the residuals and the predicted values versus observed values chart. The normal probability plot of the raw residuals is shown below. The residuals should fall around the straight line.

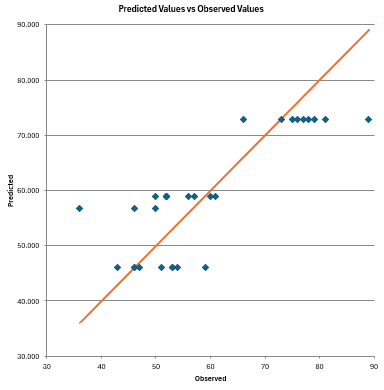

The predicted values versus observed values chart is shown below. A good model will have the points close to the line.

Additional charts are available from the “Revise” button on the residuals worksheet. See “Revising the Poisson Regression” below.

### Revising the Poisson Regression

SPC for Excel allows you to add additional charts on the Regression Charts worksheet, or to revise the regression by removing observations or removing variables. To access these options, select the “Revise” button on the residuals worksheet (see figure above). You will get the form below.

These three options are discussed below.

#### Additional Residual Charts

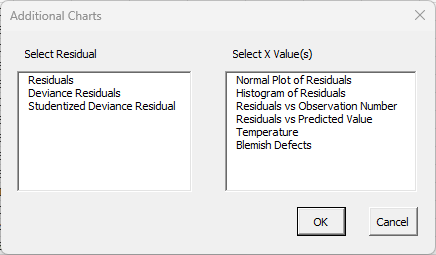

Selecting this option allows you to add additional charts via the form below. The residuals are listed on the left side (and will include leverage, etc. if those options were selected). You can select one type of residual. The possible X values are shown on the left-hand side. You may select multiple of these. Selecting OK will generate each chart selected and place them on the Regression Charts worksheet.

#### Remove Variables

If you select the remove variable option, you will see the input screen below. Select the variable(s) you want to remove. Select OK and a new regression will be run.

#### Remove Observations

I f you want to remove some of these observations, select the Remove Observations option. You will get a box that lists all the observations. Select the observation(s) you want to delete and then select OK. A new regression will be run.
