# Moving Range (mR) Chart Help

Home » SPC for Excel Help » Control Charts Help » Variable Control Charts Help » Individual Charts Help » Moving Range (mR) Chart Help

The moving range (mR) control chart is the “mR” part of the X-mR control chart. There are times when you might want to just look at the variation between consecutive samples. The conditions for using the mR control chart are the same as for the X-mR chart, i.e., limited data – only one point to represent the situation at a time. For example, suppose you company is tracking accounts receivable each month. You have limited data – one data point a month. You can use the mR control chart in these situations. You plot the range between consecutive monthly result on the mR chart. For more information on X-mR charts please see our SPC Knowledge Base on our website.

This page shows you how to make the mR control chart. It is essentially the same procedure as for the X-mR control chart. The data can be downloaded at this link. This page contains the following:

### Creating a New mR Chart

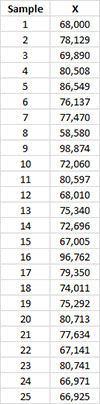

- 1. Select the data on the worksheet to be included in the analysis. This is the shaded area shown below. You can use “Select Cells” in the “Utilities” panel of the SPC for Excel ribbon to quickly select the cells.
- 2. Select “Variable” from the “Control Charts” panel on the SPC for Excel ribbon.
- 3. The input screen for variable control charts is displayed. The mR chart is listed on the second tab (Individuals Charts) of input screen.
- 4. Select “mR Chart” from the “Individuals Charts” tab. Select OK.
- 5. The input screen for the mR chart is then displayed. The program sets the initial sample identifiers ranges based on the range you selected on the worksheet. This is why there is an advantage to selecting the sample and data ranges prior to making the control chart. You can edit the ranges if needed here. Enter a name for the chart. In this example, the name “Accounts Receivable” is used as the name of the mR chart. This is the name that will appear on the worksheet tab containing the control chart. It must be unique – there can not be another workbook tab with that name.

This is all that is needed to make the mR chart. If you select OK at this point, the software will generate the control chart using the default options. Simple and quick.

The options are:

- Sample Identifiers: worksheet range containing the sample identifiers
- Data: worksheet range containing the data
- Name of Chart: chart name – must be a unique name in the workbook and is limited to 25 characters
- Sample Identifiers: this information is used to search for new data when updating the chart (see below)

- In One Column: the sample identifiers are in one column (as in this example)
- In One Row: the sample identifiers are in one row as new data are added, default value is Yes; set this to No to stop the average and control limits from updating

- Show Options: selecting this button shows the various options for this chart (see options below)

- Out of Control Tests
- Control Limit Options
- Titles and Formats
- Manual Control Limits
- Chart Location
- Box-Cox Transformation
- Process Capability

- Select OK to create the mR chart
- Select Cancel to exit the software

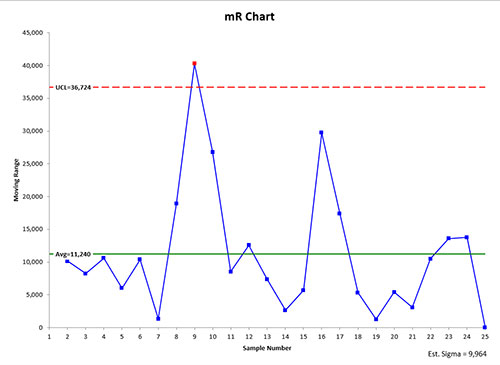

- 6. Once you have entered the information, select OK and the mR chart will be generated. An example based on the data above is shown below. Note that the estimated sigma is shown in the lower right hand corner of the mR chart.

### Options for the mR Chart

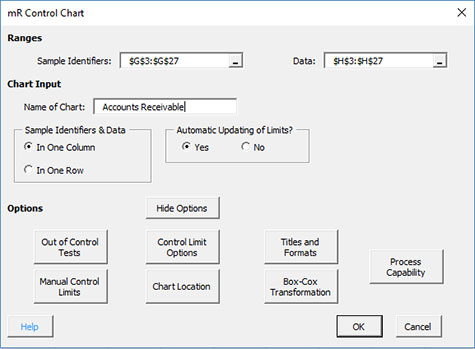

On the input screen for the mR chart, there is a button labeled “Show Options”. If you select that button, the input screen will show the options available for the chart. It is not required to select any of these options.

Each option is described below.

#### Out of Control Tests

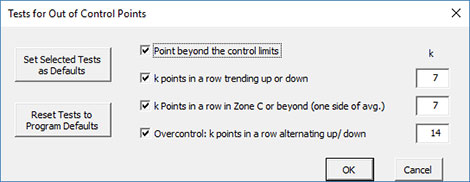

If you select the Out of Control Tests, the input screen, Tests for Out of Control Points, is displayed below.

These options include:

- Point beyond the control limits: out of control if a point that is above the upper control or below the lower control
- k points in a row trending up or down: out of control if there are k points in a row trending upward or trending downward; two points in a row that are equal break this trend
- k points in a row in Zone C or beyond (one side of avg): out of control of there is a run of k points in a row above or below the average
- Overcontrol: k points in row alternating up and down: out of control if k points in a row are such that the values alternate up and down
- Set Selected Tests as Defaults: this will set the selected test and k values as defaults for this type of chart
- Reset Tests to Program Defaults: resets the tests to the original program defaults for the type of chart

#### Control Limit Options

If you select the “Control Limit Options” button, the following is displayed. Note that sigma is estimated from the moving range.

The options include:

- Based Control Limits on +/- ___ Sigma: defines how to calculate the control limits; default is +/- 3 sigma
- Select OK to use selected option
- Select Cancel to revert to previous option

#### Titles and Formats

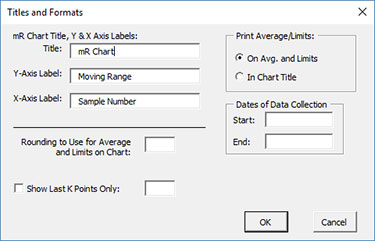

If you select the “Title and Formats” button, the following screen is displayed:

The options include:

- mR Chart Title & Y Axis Label:

- Title: title at the top of the chart; default is “mR Chart”
- Y-Axis Label: label to put on the chart vertical axis; default is “Moving Range”
- X-Axis Label: label to put on the horizontal axis for the mR chart; default is “Sample Number”

- Rounding to Use for Average and Limits on Chart: used to control the number of decimal places in the values of the average and control limits printed on the chart; default is estimated by the software
- Print Average/Limits:

- On Avg. and Limits: prints the values of the average and control limits on the average and control limit lines on the control chart (this is the default)
- In Chart Title: prints the values of the average and control limits in the control chart title

- Dates of Data Collection: enter the start and end dates of data collection; optional; dates will be plotted at the bottom of the chart
- Show Last K Points Only: option to show only the last K points of the chart; calculations include all the data but only the last K points will be shown
- Select OK to use selected options
- Select Cancel to revert to previous options

#### Manual Control Limits

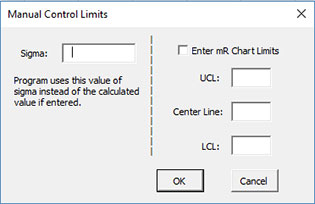

If you select the “Manual Control Limits” button, the following screen is displayed:

The options include:

- Enter Average and Sigma: the software uses these input values instead of those calculated by the software

- Average: enter the average to be used in the calculations
- Sigma: enter the standard deviation to be used in the calculations

- Enter mR Chart Limits: if you select this option, you must enter at least one of the UCL, centerline, and LCL; the software will calculate the values that are not entered

- UCL: enter the upper control limit
- Center Line: enter the center line value
- LCL: enter the lower control limit

- Select OK to use selected options
- Select Cancel to revert to previous options

#### Chart Location

If you select the “Chart Location” button, the following screen is displayed.

The options are:

- New Chart Sheet: places the mR chart on a new chart sheet
- In Worksheet with Data: places the mR chart on the worksheet containing the data
- In New Worksheet: places both the mR on a new worksheet
- Select OK to use selected options
- Select Cancel to revert to previous options

Notes:

- Once a control chart is made, you can move the chart to new locations in the workbook. The software will find the chart when updating.
- This option is not available when a chart’s options are updated since you can manually move the charts to new locations in the workbook

#### Box-Cox Transformation

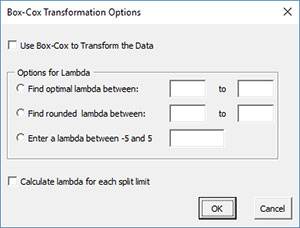

Selecting the “Box-Cox Transformation” button displays the following screen:

The options are:

- Use Box-Cox to Transform the Data: selecting this option reveals the bottom part of the input form
- Options for Lambda

- Find optimal lambda between: finds the value of lambda that minimizes the standard deviation between the default values of -5 and 5
- Find rounded lambda between: finds the rounded value of lambda that minimizes the standard deviation between the default values of -5 and 5; rounded value of lambda are -5, -4, -3, -2, -1, -.5, 0, .5, 1, 2, 3, 4 and 5
- Enter a lambda between -5 and 5: enter a value of lambda to use between the values of -5 and 5

- Calculate lambda for each split limit: this option will calculate the value of lambda for each set of split control limits
- Select OK to use selected options
- Select Cancel to revert to previous options

Notes:

- The default values of -5 and 5 can be changes when finding the optimal or rounded values of lambda, but must stay between -5 and 5.
- The standard deviation that is minimized is based on the method used to estimate sigma from the range chart (see Control Limit Options)

#### Process Capability

The “Process Capability” button gives you the option to “tie” a control chart to a process capability chart. This is different from running a process capability option by itself. When the process capability is tied to a control chart, the estimated sigma is based on the option you selected to estimate the value of sigma for the range chart for that control chart. For example, you might have 20 subgroups and split the control limits for the last 10 subgroups. In that case, the process capability (when it is tied to a control chart) will be based on the estimated sigma for the last ten subgroups. When you run a process capability by itself, it would use all the 20 subgroups to estimate sigma. If you manually enter the value of sigma to use for the control chart (see Manual Control Limits above), the software will use that value of sigma for the process capability analysis. The process capability chart is added to a new chart sheet.

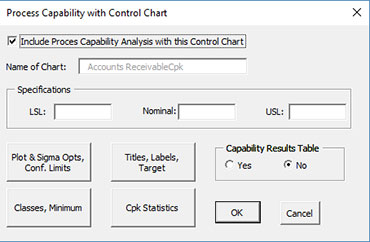

If you select the “Process Capability” option, the following input screen is shown. You must enter a name for the control chart before this input screen will show. In the example below, the name of the control chart is Accounts Receivable. The name of the process capability chart will be the name of the control chart plus “Cpk” – or Accounts ReceivableCpk in this example.

The options include:

- Include Process Capability Analysis with this Control Chart: select this to activate the option, the rest of input screen is then shown
- Name of Chart: name of worksheet tab that will contain the Cpk chart; this name cannot be manually changed
- Specifications: enter specifications or nominal; at least one specification is required

- LSL: enter lower specification
- Nominal: enter nominal
- USL: enter upper specification limit

- Sigma & Avg Lines, Shading: select this to show the Cpk chart options (see the Sigma, Average, Shade option for Cpk charts for details, note: the option to change how sigma is estimated is not available; this is determined by the control chart)
- Titles, Labels, Target, Classes: select this option to show the titles options (see the Titles, Rounding, Dates, Target, Classes option for Cpk charts for details, note: the option for dates and rounding are not available; these are determined by the control chart)
- Capability Results Table: selecting this option places a summary of the process capability results into a summary worksheet; this worksheet contains all the process capability results for the workbook if this option was selected; default value is No.
- Select OK to use selected options
- Select Cancel to revert to previous options

### Changing the Options for the mR Chart

You can change the current options for a mR chart (e.g., adding a Box-Cox transformation) by selecting “Options” on the Updating/Options panel on the SPC for Excel Ribbon.

The list of available charts in the workbook will be displayed. Select the chart you want to change options for. The input screen for that chart will be shown and changes can be made. See Changing Chart Options for more information

In addition, once a control chart is made, there are numerous actions you can take on the chart including splitting control limits, removing points from the calculations, adding comments, selecting the range on which to base control limits, etc. Please see Control Chart Actions for details.
